D-type polyurethane fender

D-type polyurethane fender

  • D-type polyurethane fender
  • D-type polyurethane fender
D-type polyurethane fender
Dettagli:
Luogo di origine: Qingdao, Cina
Marca: Luhang
Certificazione: ISO14409
Numero di modello: LHA2
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1 pz
Prezzo: Negoziabile
Imballaggi particolari: Pellicola a pacco sul palllet
Tempi di consegna: 10 ~ 15 giorni lavorativi
Termini di pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione: 100pcs/mese
Contatto
Descrizione di prodotto dettagliata

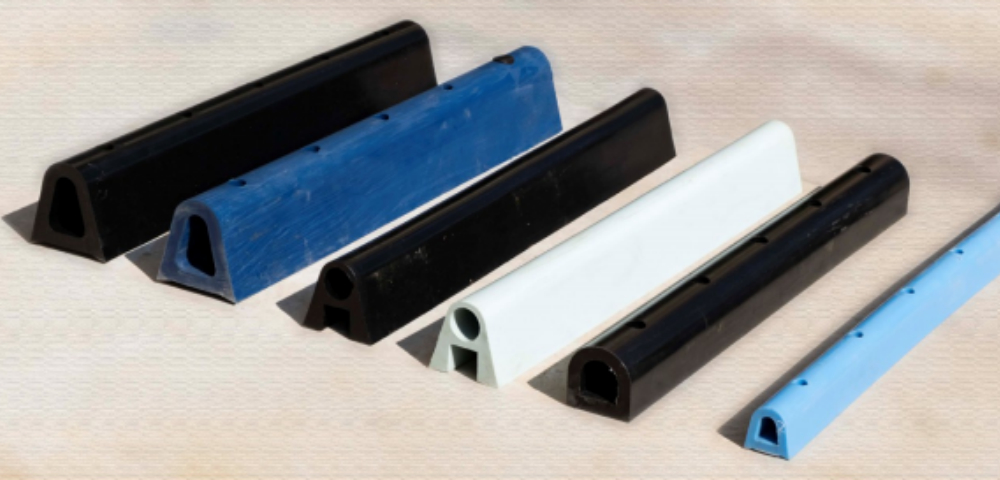

D-type polyurethane fender



1. The cross-section of the D-type fender is semi-circular and it is hollow throughout.
2. It has a large energy absorption capacity, low reaction force and light weight.
3. It is easy to install and maintain, and is suitable for smaller public vessels and yachts. Our company has currently developed six types of D-type polyurethane fenders for selection: D-200/200, D-150/150, D-100/100, D-100/80, D-80/60, D-70/70 and D-60/50.

D-type polyurethane fender 0

D-type polyurethane fender 1D-type polyurethane fender 2

Products Specification







Serial Number Model Specification (Width × Height × Length) MM Weight (KG)
1 Type D 200×200×1000 16
2 Type D 150×150×1000 10.6
3 Type D 100×100×1000 6.2
4 Type D 100×80×1000 6
5 Type D 80×60×1000 3.4
6 Type D 70×70×1200 3.3
7 Type D 60×50×1000 1.6



Installation method

D-type polyurethane fender 3D-type polyurethane fender 4

Installation Instructions:

1. Weld the fixing bolts at the corresponding positions on the hull according to the installation diagram.

2. Install the fender on the hull as shown in the figure and fasten it with bolts.
